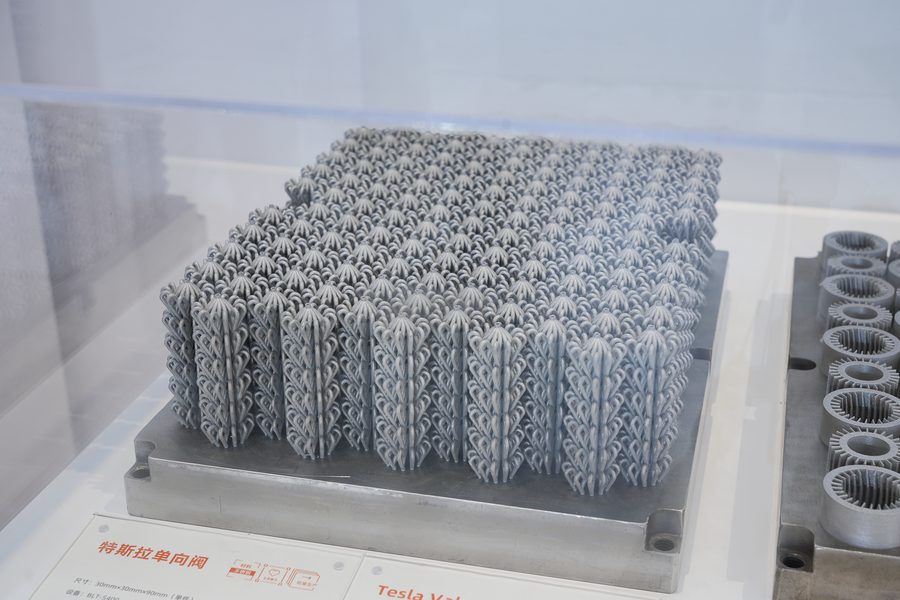

Экспозиционный массив клапанов Тесла AM
Массив пассивных клапанов Тесла на подложке — односторонние каналы и промывка порошка; не SKU управления потоком.
Типовая спецификация
| Параметр | Типичное значение |
|---|---|
| Process | Metal 3D Printing |
| Material | Stainless or titanium alloy TBD |
| Form | Part / context blank |
| Industry | Industrial |
| Post | Support removal; finish TBD per drawing |
Design intent
Exhibit array of passive Tesla-valve blanks standing on a thick substrate — for discussing one-way channel geometry and powder flush; not a rated fluid-control SKU.
- Call which faces are datums versus cosmetic
- Keep powder-escape paths open on lattice or thinwall features
- State preferred alloy family on the RFQ
Manufacturing notes
Orient so internal cavities stay flushable after support removal. Mark any sealing, bearing, or flange faces that must be secondary-finished.
What to put on the RFQ
- Preferred alloy family
- Envelope and critical flatness or bore positions
- Any coating keep-out zones (state them; we do not invent certifications)
Honesty bar
No invented customers, prices, cycle times, certifications, or performance guarantees on this page.
