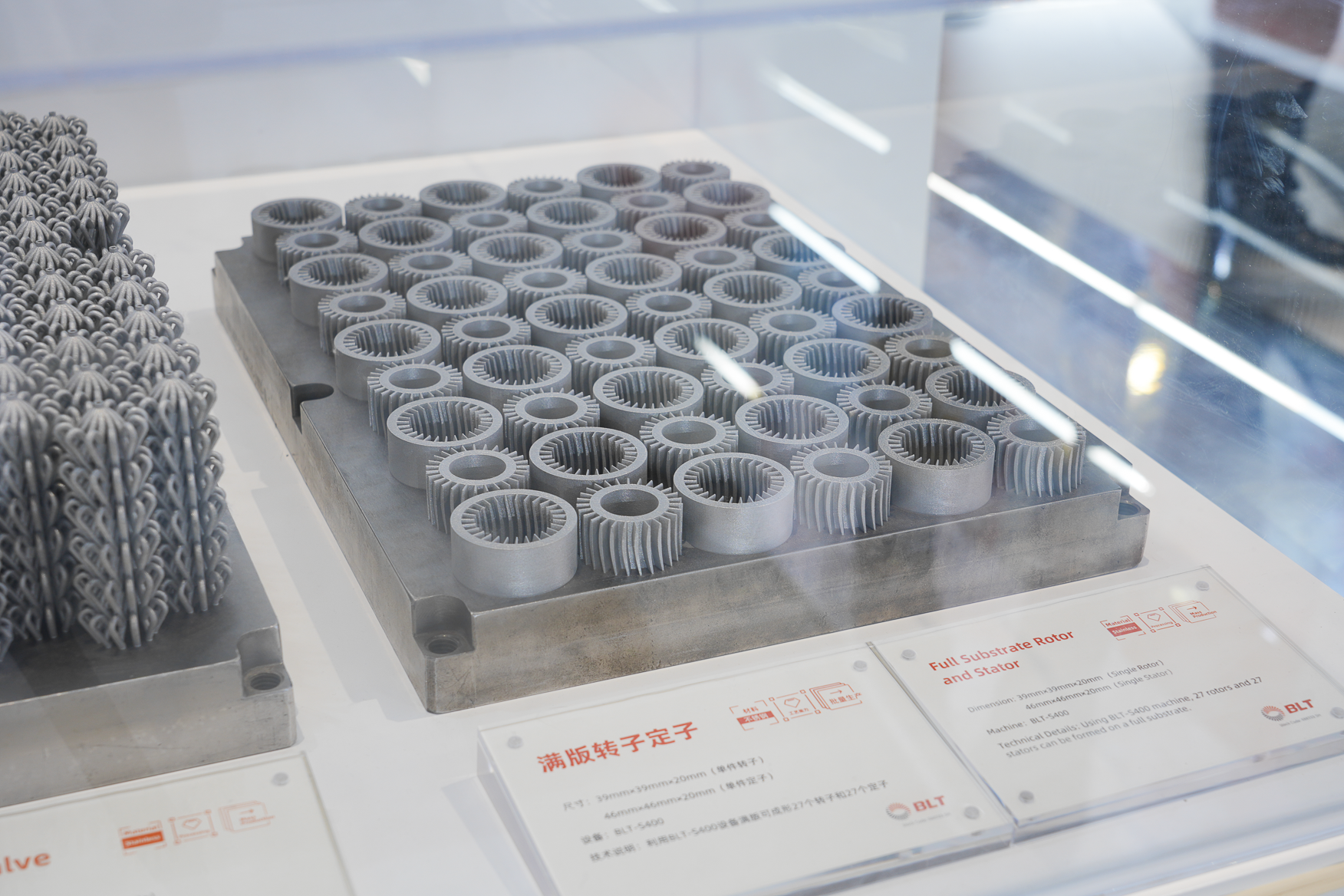

Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.
ProcessMulti-part metal AM plate
FormRotor + stator nest on one plate
UseMotor component discussion
PostCut off; mill critical faces TBD
| Параметр | Типичное значение |
|---|---|
| Note | Nesting geometry for RFQ talk only |
Why show a full motor nest
A shared plate of rotors and stators is a nesting and powder-escape conversation, not a ranked motor catalog.
- Call which faces are datums versus as-built skins
- Keep neighbor gaps large enough for powder flush
- Separate first-article pieces from production nests on the RFQ
Honesty bar
No claimed cycle times, laser counts, torque figures, or cost-per-part numbers on this page. Bring those expectations on your RFQ if you have them.
