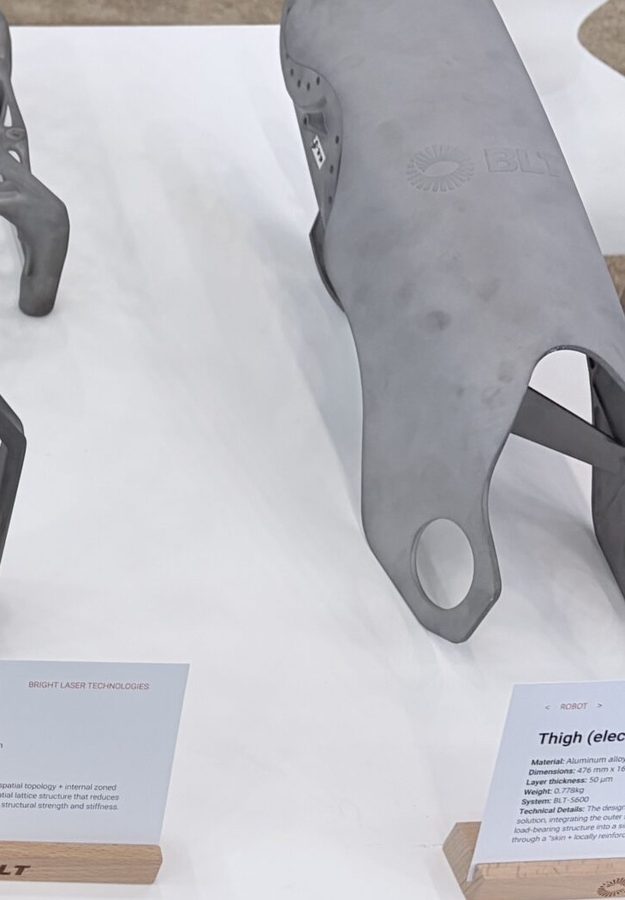

Алюминиевая оболочка бедра робота AM
Алюминиевая оболочка бедра робота с решёткой — объединение оболочки/решётки; не сертифицированный робот.
Design intent
Aluminum-class robot thigh shell blank with integrated lattice and fastening holes — for discussing shell/lattice consolidation and which faces need finish; not a certified robot SKU.
- Call which faces are datums versus cosmetic
- Keep powder-escape paths open on lattice or thinwall features
- State preferred alloy family on the RFQ
Manufacturing notes
Orient so internal cavities stay flushable after support removal. Mark any sealing, bearing, or flange faces that must be secondary-finished.
What to put on the RFQ
- Preferred alloy family
- Envelope and critical flatness or bore positions
- Any coating keep-out zones (state them; we do not invent certifications)
Honesty bar
No invented customers, prices, cycle times, certifications, or performance guarantees on this page.
Типовая спецификация
Кратко
| Параметр | Типичное значение |
|---|---|
| Process | Metal 3D Printing |
| Material | Aluminum alloy TBD |
| Form | Part / context blank |
| Industry | Robotics |
| Post | Support removal; finish TBD per drawing |
Следующий шаг
Есть похожая деталь?
Загрузите САПР и чертежи. Инженер проверяет материалы, допуски и отделку перед ценообразованием.
