Фланец робота AM с ромбовидной облицовкой

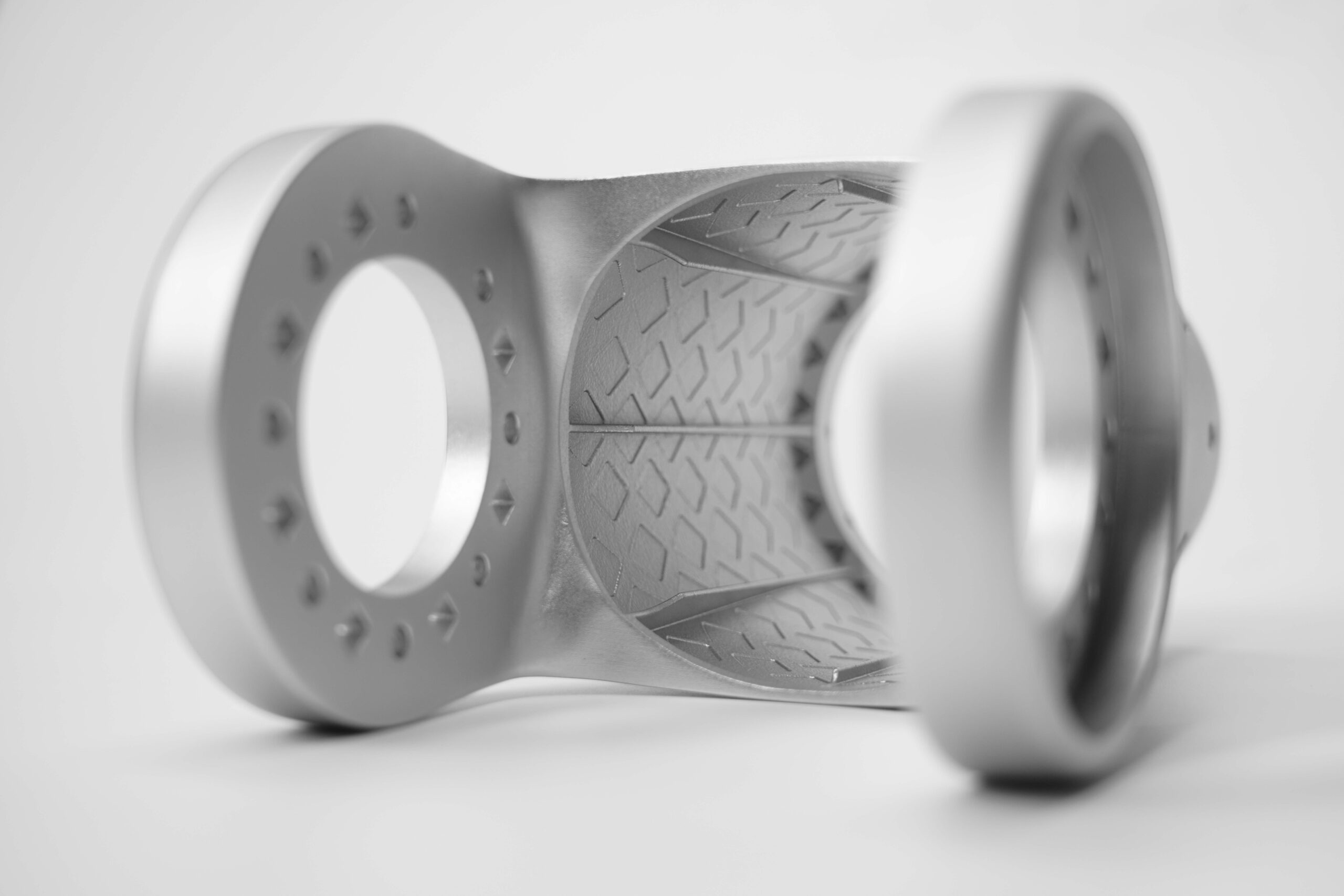

Close-up of a robot flange joint interior showing a raised diamond / lozenge liner and internal ribs — for discussing printable interior textures and inspection access without inventing performance numbers.
Типовая спецификация
Ключевые значения
| Параметр | Типичное значение |
|---|---|
| Process | Metal powder-bed fusion |
| Material | Al or Ti alloy |
| Form | Flange joint with diamond interior liner |
| Interior | Raised diamond / rib pattern |
| Post | Powder flush; optional face mill |
Interior-texture mindset
Raised diamond liners change powder retention and inspection even when the outer envelope looks simple.
- Call whether the liner faces a cable path, fluid, or cosmetic cavity
- Separate as-built interiors from gasket faces that must be flat
What we will not invent
No grip or friction coefficients, no OEM robot brands as customers, and no invented fatigue life on this page.
