Генеративный пятиспицевый обод AM

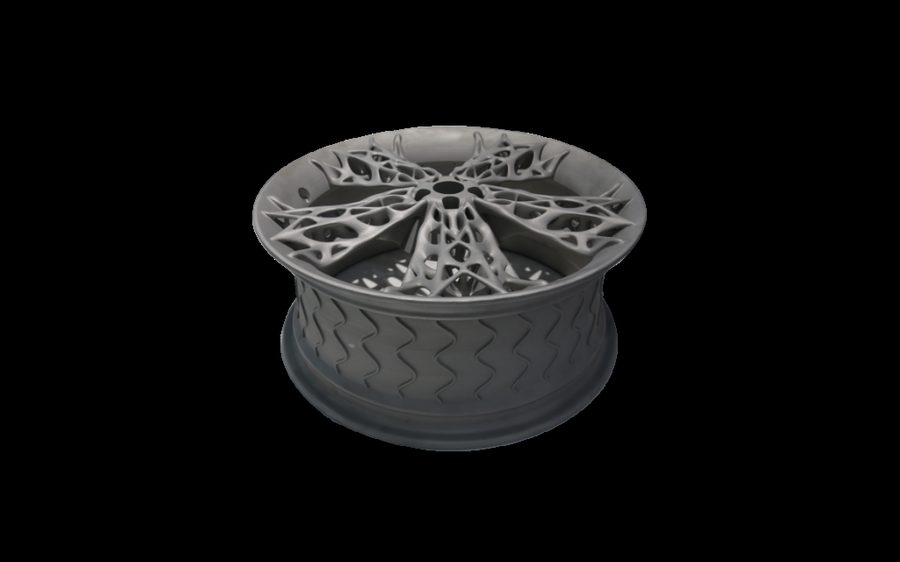

Генеративный пятиспицевый обод — зазоры спиц и посадочное место; не дорожное колесо.
- 01
Design intent
Generative five-spoke wheel rim blank with branching lattice spokes — for discussing spoke clearance and bead seat finish; not a road-legal wheel listing.
- Call which faces are datums versus cosmetic
- Keep powder-escape paths open on lattice or thinwall features
- State preferred alloy family on the RFQ
- 02
Manufacturing notes
Orient so internal cavities stay flushable after support removal. Mark any sealing, bearing, or flange faces that must be secondary-finished.
- 03
What to put on the RFQ
- Preferred alloy family
- Envelope and critical flatness or bore positions
- Any coating keep-out zones (state them; we do not invent certifications)
- 04
Honesty bar
No invented customers, prices, cycle times, certifications, or performance guarantees on this page.
Типовая спецификация
Отправные точки для этой детали
- Process
- Metal 3D Printing
- Material
- Aluminum or titanium alloy TBD
- Form
- Part / context blank
- Industry
- Automotive
- Post
- Support removal; finish TBD per drawing
Следующий шаг
Есть похожая деталь?
Загрузите САПР и чертежи. Инженер проверяет материалы, допуски и отделку перед ценообразованием.
