Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.
ProcessMetal 3D Printing
MaterialTitanium or steel alloy TBD
FormPart / context blank
IndustryAerospace
| Параметр | Типичное значение |
|---|---|
| Post | Support removal; finish TBD per drawing |
Design intent

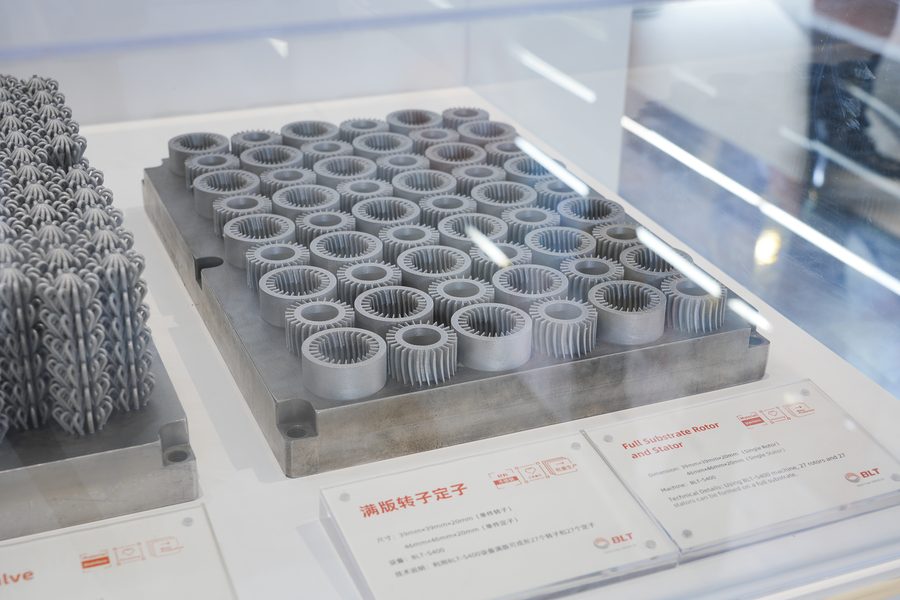

Grid of small ridged rotor/stator blanks still on a full substrate in a glass case — for RFQ talk on nest density and secondary ID work; not a certified motor listing.
- Call which faces are datums versus cosmetic
- Keep powder-escape paths open on lattice or thinwall features
- State preferred alloy family on the RFQ
Manufacturing notes
Orient so internal cavities stay flushable after support removal. Mark any sealing, bearing, or flange faces that must be secondary-finished.
What to put on the RFQ
- Preferred alloy family
- Envelope and critical flatness or bore positions
- Any coating keep-out zones (state them; we do not invent certifications)
Honesty bar
No invented customers, prices, cycle times, certifications, or performance guarantees on this page.
Следующий шаг
Есть похожая деталь?
Загрузите САПР и чертежи. Инженер проверяет материалы, допуски и отделку перед ценообразованием.
