Компактный диск с радиальными лопатками Metal AM

Compact radial-bladed metal disk with a flat hub top — for discussing printable blade count class, hub datums, and which faces need secondary finish; not a ranked turbomachinery catalog entry.

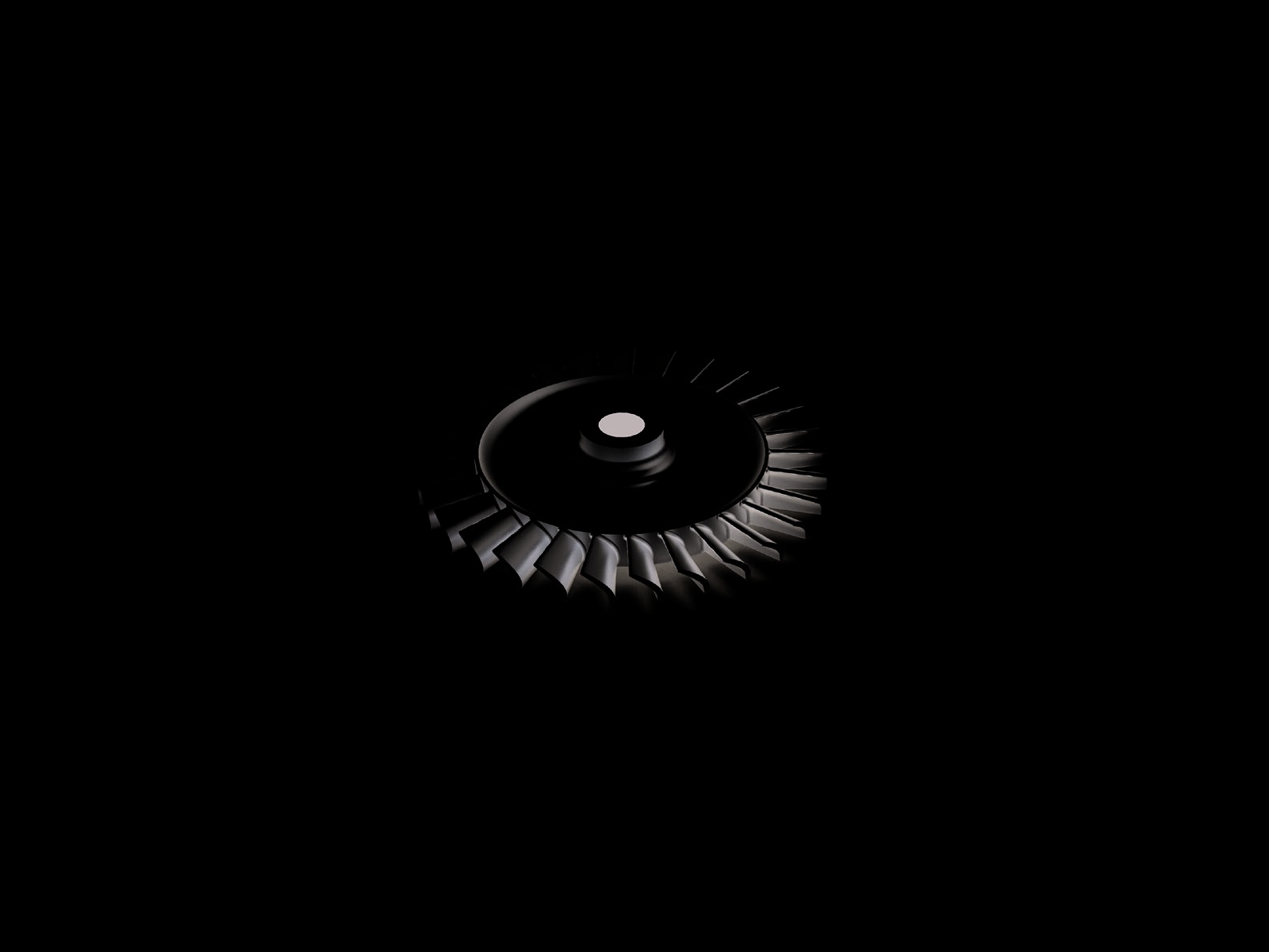

Compact metal additive radial-bladed disk blank with flat hub top on black background — Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.

Типовая спецификация

Ключевые значения

Параметр	Типичное значение
Process	Metal powder-bed fusion
Material	Ti or nickel alloy
Form	Compact radial-bladed disk
Hub	Flat top with center land
Post	Support removal; optional hub mill

Bladed-disk mindset

Dense radial blades look simple from above but need clear minimum thickness, powder-clear paths, and a plan for measuring the hub.

State which faces are primary datums versus as-built skins
Do not invent efficiency or RPM numbers on this page

RFQ checklist

Alloy family, envelope, blade count class, and any balance or inspection expectations you need stated.
