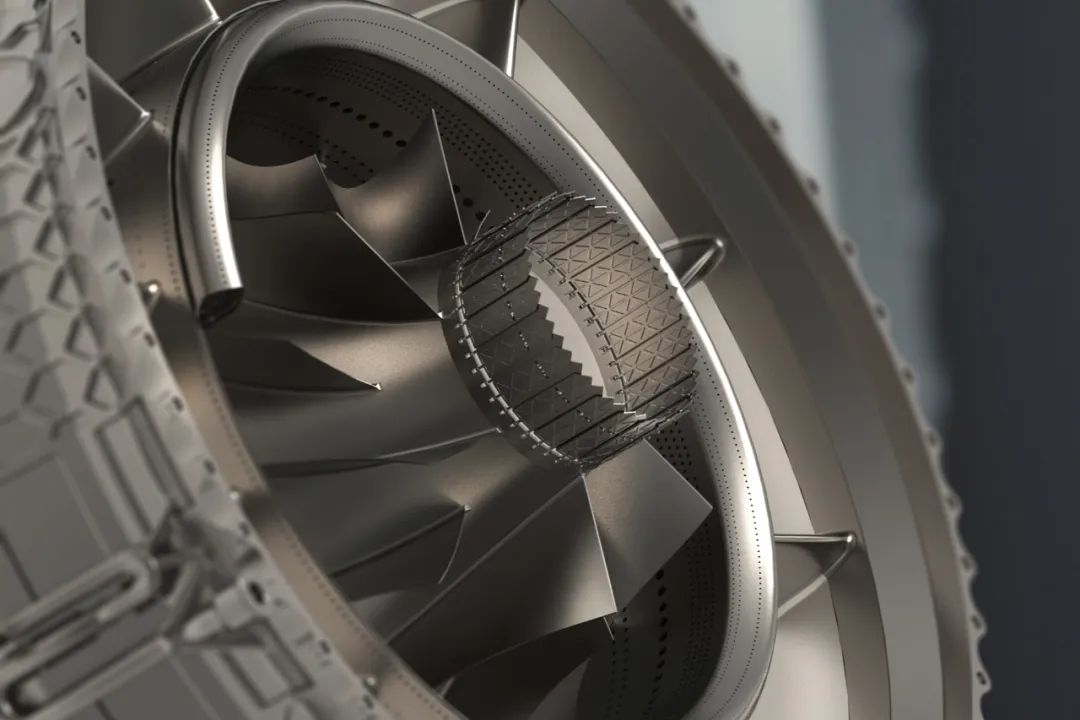

Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK example page — brand remains 3DWK; not a BLT storefront listing.
ProcessMetal powder-bed fusionПример · уточняется / 「示例、待确认」
MaterialNi or Ti alloyПример · уточняется / 「示例、待确认」
FormMulti-blade rotor + perforated ringsПример · уточняется / 「示例、待确认」
HubLattice / textured centerПример · уточняется / 「示例、待确认」
| Item | Typical value | Note |
|---|---|---|
| Post | Support removal; optional CNC datums | Пример · уточняется / 「示例、待确认」 |
Design intent
This example shows blades, cooling-style perforations, and a lattice hub sharing one metal AM blank.
- Call out which rings are flow paths versus structural skins
- Keep blade edges inspectable after support removal
- Do not invent airflow, RPM, or certification numbers on this page
Manufacturing notes
Perforated rings need reliable powder removal and clear inspection access. Mark primary datums for any post-machined bores.
All dimensions and alloys on this page are examples to be confirmed — not a quotation.
What to put on the RFQ
- Preferred alloy family
- Which faces need blend or polish
- Any NDT expectations (state them; we do not invent certifications)
Пример · уточняется / 「示例、待确认」
Next step
Есть похожая деталь?
Загрузите САПР и чертежи. Инженер проверяет материалы, допуски и отделку перед ценообразованием.
